Leveraging Domino Autoupdate for company internal downloads

Daniel Nashed – 17 December 2023 12:10:10

Now that we have software automatically downloaded into autoupdate.nsf in Domino 14.0, the next step would be to distribute software inside your organization.

The attachment data is stored in autoupdate.nsf. An agent could be used to find the software and redirect to the right URL.


I wrote a simple search and redirect agent and a redirect rule.

To download a file it can be just referenced by it's file name.

The agent takes care of finding the document and generating the right redirect.


A download via curl could just look like that:


curl -LO -u autoupdate:mypassword
https://pluto.nashcom.org/software/Domino_14.0_Linux_English.tar

% Total    % Received % Xferd  Average Speed   Time    Time     Time  Current

100 1068M  100 1068M    0     0  94.1M      0  0:00:11  0:00:11 --:--:--  102M


In my case the logic is in a separate software.nsf database. The target database is protected with Notes ACL.


This is separate logic not added into autoupdate.nsf. No modification to autoupdate.nsf is needed

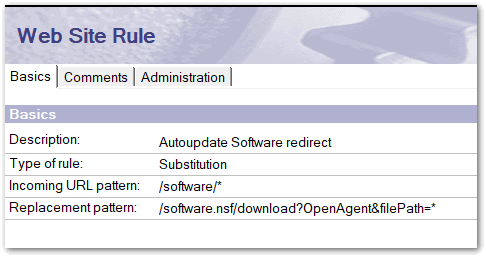

The agent just generates a redirect and you could also add a redirect rule to hide this is is Notes database providing this redirect service.



HTTP Download Performance Improvements


The performance you see in this example was a test from another server at the same provider (two Hetzner servers).
There is a performance improvement in Domino 14.0 for those type of downloads.


Uncompressed attachment downloads


Attachments in autoupdate.nsf are stored uncompressed on purpose.
First of all the data is already compressed inside the attachment. So the compression would not bring much if any benefit at all.

But more important an download would need to decompress the LZ1 during download.

This takes CPU time and also goes thru a different logic than a plain download.

A plain uncompressed download can just stream the attachment object read 1:1.

The download performance for uncompressed attachments via HTTP/HTTPS has been greatly improved in Domino 14.0.


100 MB/sec for downloading a larger attachment -- like in my example -- is quite impressive speed.


At this speed testing becomes difficult. It's also a matter of your disk write performance and of course your network speed.



How do you like this this idea? Would this be helpful inside your environment for distributing software internally in your organization?


-- Daniel




Image:Leveraging Domino Autoupdate for company internal downloads


Option
Declare

Sub
Initialize


Dim session As New NotesSession

Dim db As NotesDatabase

Dim WebDoc As NotesDocument

Dim doc As NotesDocument


On Error GoTo error_handler


Set db = session.Currentdatabase

Set WebDoc = session.DocumentContext


If ("GET" = WebDoc.REQUEST_METHOD(0)) Then


Call  DownloadRedirect (WebDoc)


Exit Sub

End If


' Other requests are ignored

Exit Sub

error_handler:


Print "Content-type: text/plain"

Print ""

Print "Error processing request"


Exit Sub


End
Sub



Su
b LogError (ErrorStr As String)
Prin
t ("Error: " + ErrorStr)
En
d Sub

Functio
n GetDocByFormula (db As NotesDatabase, FormulaStr As String) As NotesDocument

      Di
m session As New NotesSession
      Di
m nc As NotesNoteCollection
      Di
m doc As NotesDocument
      Di
m nid As String


      Se
t nc = db.CreateNoteCollection (False)

      nc.Selectdocuments =
True
      nc.Selectionformula = FormulaStr

      Cal
l nc.BuildCollection

      nid = nc.GetFirstNoteId



      I
f ("" = nid) Then

        Exit Function
      En
d If


      Se
t GetDocByFormula = db.GetDocumentByID(nid)


En
d Function




Su
b SendError (ErrorStr As String)


      Prin
t "Content-Type: text/plain"
      Prin
t ""
      Prin
t ErrorStr


En
d Sub

Su
b DownloadRedirect (WebDoc As NotesDocument)
      Di
m KeyName As String
      Di
m db As New NotesDatabase ("", "autoupdate.nsf")
      Di
m doc As NotesDocument
      Di
m count As Integer

      O
n Error GoTo error_handler

      KeyName =
StrToken (StrToken (WebDoc.QUERY_STRING_DECODED(0), "&", 2), "=", 2)


      I
f ("" = KeyName) Then

        Call SendError ("Not Software specified")

        Exit Sub
      En
d If

      Se
t Doc = GetDocByFormula (db, {(Form = "Software") & fileName = "} + KeyName + {"})

      I
f (Doc Is Nothing) Then

        Call SendError ("Software not found: " + KeyName)

        Exit Sub
      En
d If

      I
f (doc.Status(0) <> "A") Then

        Call SendError ("Software not available")

        Exit Sub
      En
d If

      Prin
t "Location: /" + db.Filepath + "/0/" + doc.Universalid + "/$File/" + KeyName
      Prin
t ""

      Exi
t Sub

error_handler:

      LogError
"Software - Error: " + Error()


Exit Sub


End
Sub
